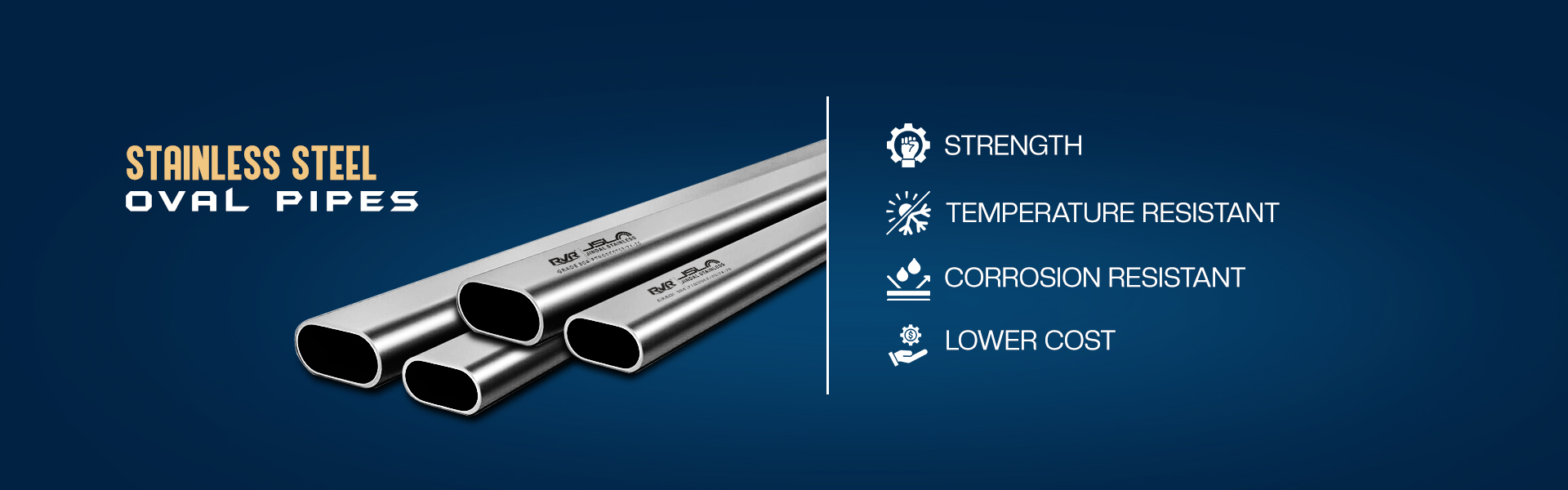

Oval Pipes
Oval pipes, also referred to as elliptical tubes, are metal tubes featuring an oval-shaped cross-section rather than a circular or square one. They offer a blend of visual elegance with smooth curves and the practical strength inherent in tubular structures.
| Stainless Steel Grade (AISI) | Condition | Tensile Strength (MPa Min) |
Yield Strength (MPa Min) |
Percentage Elongation (% Max) |
Hardness RB (Max) |
|---|---|---|---|---|---|
| JSLU-SD | Annealed | 550 | 205 | 40 | 95 |
| J3 | Annealed | 600 | 250 | 40 | 95 |
| J4 | Annealed | 700 | 350 | 40 | 95 |
| JT (202) | Annealed | 620 | 310 | 40 | 98 |
| 301 | Annealed | 515 | 205 | 40 | 88 |
| 304 | Annealed | 579 | 290 | 45 | 80 |
| 304L | Annealed | 558 | 269 | 55 | 80 |
| 316 | Annealed | 579 | 290 | 50 | 79 |
| 316L | Annealed | 558 | 290 | 45 | 79 |
| 321 | Annealed | 621 | 241 | 45 | 80 |
| 409M | Annealed | 480 | 275 | 30 | 90 |
| 410S | Annealed | 480 | 310 | 22 | 90 |
| 420 | Annealed | 665 | 345 | 15 | 95 |
| 430 | Annealed | 517 | 345 | 25 | 85 |
| GRADE | C (Max) | Mn (Max) | Si (Max) | P (Max) | S (Max) | NI | SR |
|---|---|---|---|---|---|---|---|
| JSLU-SD | 0.15 | - | 0.75 | 0.100 | 0.020 | 0.40-0.75 | 13.25-00.00 |
| J3 | 0.80 | 9.00-10.50 | 0.75 | 0.075 | 0.030 | 2.00-3.00 | 14.00-16.00 |
| J4 | 0.10 | 8.50-10.00 | 0.75 | 0.080 | 0.030 | 1.2 Max | 15.00-16.00 |
| JT (202) | 0.08 | 7.5-10.00 | 1.00 | 0.100 | 0.030 | 0.2-0.4 | 14.00-00.00 |
| 301 | 0.15 | 2.00 | 1.00 | 0.045 | 0.030 | 6.00-8.00 | 16.00-18.00 |
| 304 | 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 8.00-10.50 | 18.00-20.00 |
| 304L | 0.03 | 2.00 | 0.75 | 0.045 | 0.030 | 8.00-12.00 | 18.00-20.00 |
| 316 | 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 2.00 | 0.75 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 |
| 321 | 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 9.00-12.00 | 17.00-19.00 |
| 409L | 0.03 | 1.00 | 1.00 | 0.030 | 0.040 | 0.50 Max | 10.50-11.75 |
| 410S | 0.08 | 1.00 | 1.00 | 0.040 | 0.030 | 0.60 Max | 11.50-13.50 |
| 420 | 0.30 | 1.00 | 1.00 | 0.040 | 0.030 | 0.75 Max | 12.00-14.00 |
| 430 | 0.12 | 1.00 | 1.00 | 0.030 | 0.040 | 0.75 Max | 16.00-18.00 |
